| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | TMTeck |
| رقم الموديل: | TS115 |
| الحد الأدنى لكمية: | 1 |
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | كرتون |
| وقت التسليم: | 4-6 أيام عمل |
| شروط الدفع: | T/T ، Western Union ، PayPal |
| القدرة على العرض: | 100 قطعة / أسبوع واحد |
| يكتب: | مسبار صفيف مرحلي | عنصر: | 32 |
|---|---|---|---|
| شكل العنصر: | بطانة | تطبيق: | قياس سمك واسع |
| لون: | قطعة من الجبن | ||
| إبراز: | carbon steel weld probe,Ts115 ultrasonic transducer,high compatibility weld probe,Ts115 ultrasonic transducer,high compatibility weld probe |
||

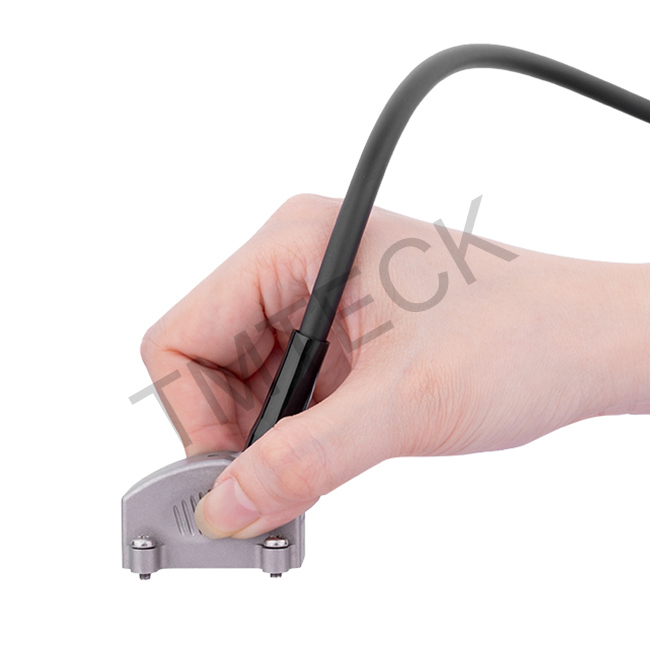

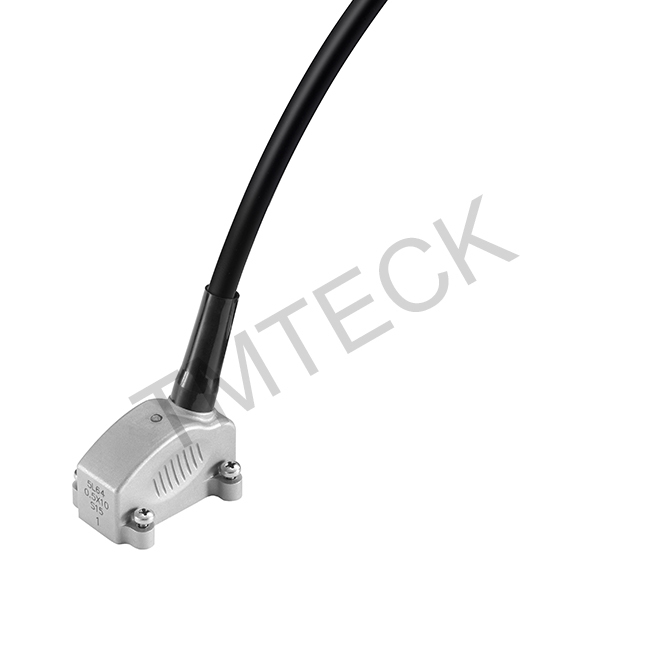

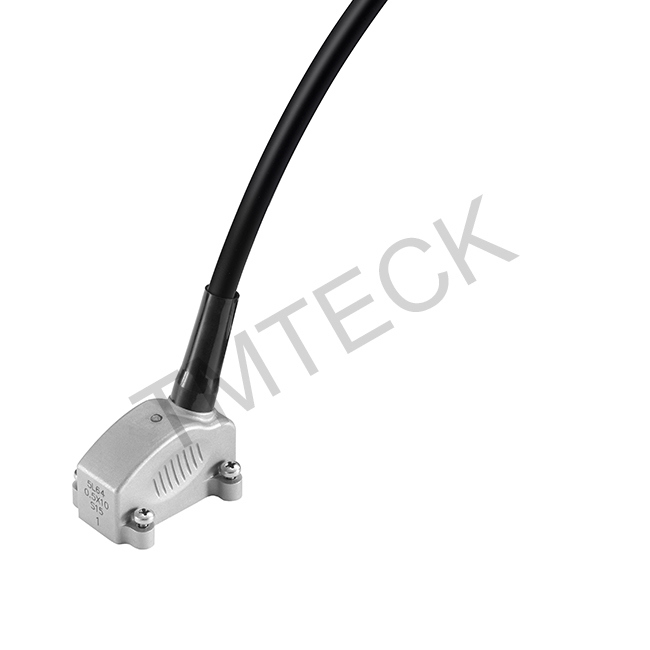

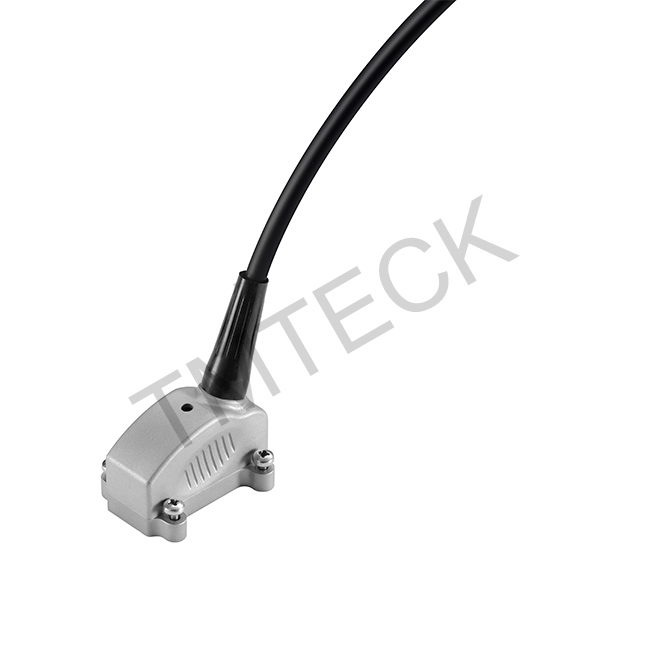

Carbon Steel Weld Probe: Specific
Advantages
1.High compatibility, can be compatible with most phased array flaw detectors.
2.carbon steel weld series:
3.Thick weld inspection from 3 mm to 60 mm
4.Manual or automatic detection
5.Wide thickness measurement
6.Excellent signal to noise ratio
7.Moderate constitution and large monitoring range
Applications
1.Thick plate material and weld
2.Forgings, noise or granular materials
3.Moderate constitution and large monitoring range
Specification
| Probe Series |
Model | Element Shape |
Freq (MHz) | E-Nos | Pitch (mm) |
Active (mm) |
Elev.(mm) |
Size (LxWxH) |
| TS115 | 2.25L32-1.0x10 | Linear | 2.25 | 32 | 1.00 | 32.0 | 10.0 |
LxWxH:40x28x25 (mm) LxWxH:1.57x1.1x0.98 (in) |
| 2.25L64-0.5x10 | Linear | 2.25 | 64 | 0.50 | 32.0 | 10.0 | ||
| 5L32-1.0x10 | Linear | 5 | 32 | 1.00 | 32.0 | 10.0 | ||
| 5L64-0.5x10 | Linear | 5 | 64 | 0.50 | 32.0 | 10.0 | ||
| 7.5L32-1.0x10 | Linear | 7.5 | 32 | 1.00 | 32.0 | 10.0 | ||
| 10L64-0.5x10 | Linear | 10 | 64 | 0.50 | 32.0 | 10.0 |

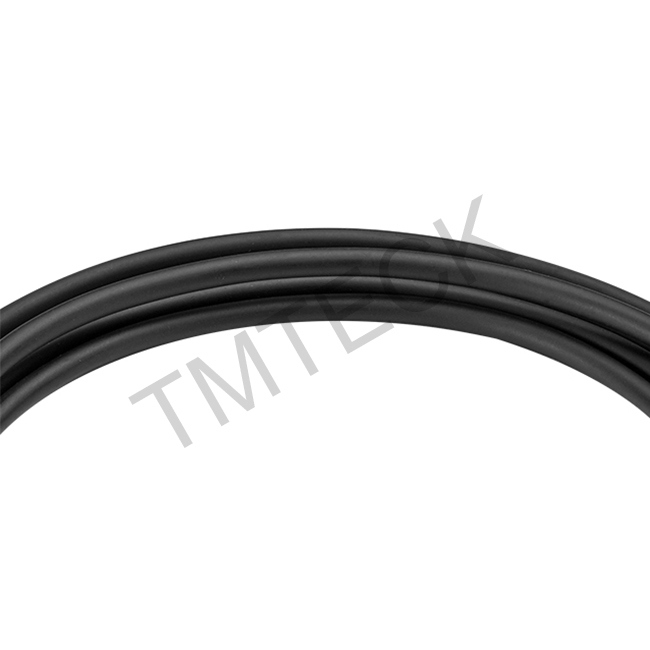

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Wedge Specification
| Probe Series | Model | Compatible Model | Element Shape | Size(LxWxH) |
| TS115 | N0L | 0°LW | 40°~70° |
LxWxH: 40x28x25 (mm) LxWxH : 1.57x1.1x0.98 (in) |
| N60L | 60°LW | 40°~70° | ||
| N55S | 55°SW | 40°~70° | ||
| N55S-IHC | 55°SW | 40°~70° | ||
| N55S-AOD500 | 55°SW | 40°~70° | ||
| N55S-IHC-AOD500 | 55°SW | 40°~70° |
Quick Details
Place of Origin:Shanghai, China
Element:32
Element Shape:linear
Size:LxWxH 40x28x25(mm)1.57x1.1x0.98(in)
Warranty:12 Months
Case:Stainless steel
Application:Wide thickness measurement
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
