| Place of Origin: | China |
|---|---|
| اسم العلامة التجارية: | TMTeck |
| Model Number: | TS41 |
| Minimum Order Quantity: | 1 |
| الأسعار: | قابل للتفاوض |
| Packaging Details: | carton |
| Delivery Time: | 4-6 work days |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 100pcs/ one week |
| Model Number: | 5L64-1.0X8-TS41 | Element: | 64 |
|---|---|---|---|
| Size: | 100x27(mm) 3.94x1.06(in) | Application: | Pipeline and bar corrosion inspection |
| Type: | phased array probe |

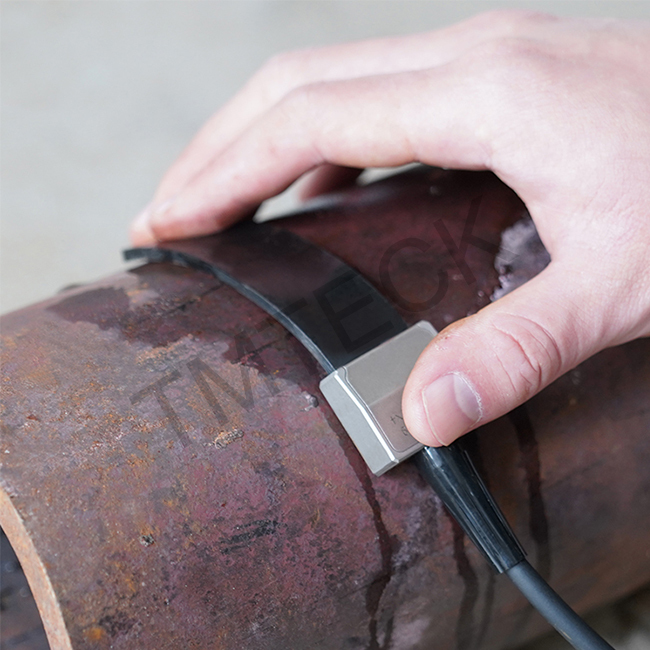

Flexible phased array probe:
can be bent at will. It used water as the coupling medium, which can be very well coupled in detecting pipes, bars and other components.
Advantages
1.Bent to fit the workpiece surface at axis direction 3-4mm thick,can be placed inside the pipe for inner inspection
2.Can be used for different diameter pipes
Application
1.Pipeline and bar corrosion inspection
2.The workpiece can be measured and imaged
3.Other complex geometric artifacts
Specification
| Probe Series |
Model | Element Shape |
Freq (MHz) | E-Nos | Pitch (mm) |
Active (mm) |
Elev. (mm) |
Size (mm) |
| TS41 | 5L64-1.0X8 | Linear | 5 | 64 | 1 | 64 | 8 | 100x27(mm) 3.94x1.06(in) |
| 7.5L64-1.0X6 | Linear | 7.5 | 64 | 0.5 | 32 | 6 | ||
| 10L64-0.5X5 | Linear | 10 | 64 | 0.5 | 32 | 5 | ||
| 15L64-0.5X5 | Linear | 15 | 64 | 0.5 | 32 | 5 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Quick Details
Model Number:5L64-1.0X8-TS41
Element:64
Element Shape:Linear
Size:100x27(mm) 3.94x1.06(in)
Warranty:12 Months
Case:Stainless steel
Application:Pipeline and bar corrosion inspection
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
