| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | TMTeck |
| رقم الموديل: | TS21 A14 |
| الحد الأدنى لكمية: | 1 |
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | كرتون |
| وقت التسليم: | 25 يوم عمل |
| شروط الدفع: | / تي تي، ويسترن يونيون، بايبال |
| القدرة على العرض: | 100 قطعة/أسبوع واحد |
| يكتب: | مسبار الصفيف المرحلي | عنصر: | 60 |
|---|---|---|---|
| شكل العنصر: | مقعر | مقاس: | الطول × العرض × الارتفاع 68 × 23 × 20 (مم) 2.68 × 0.91 × 0.79 (بوصة) |
| طلب: | النفط والغاز: خطوط أنابيب النفط، والزجاجات، والخزانات، وما إلى ذلك. | لون: | قطعة من الجبن |

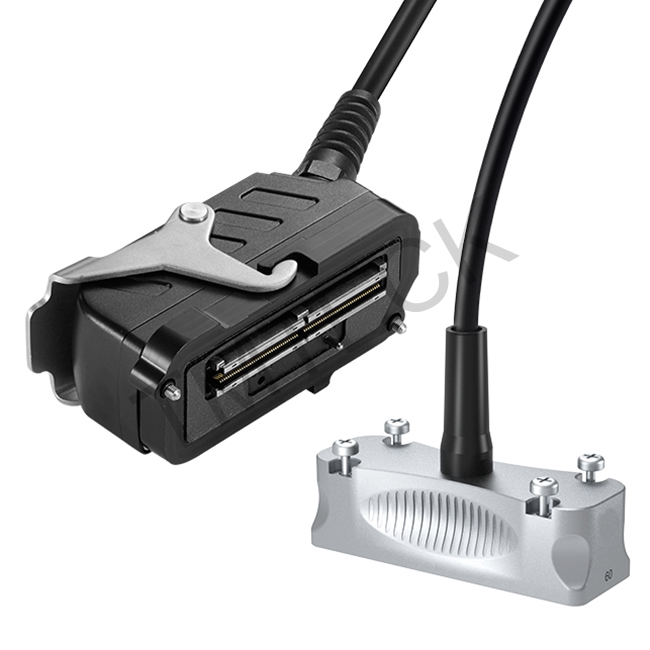

Corrosion Probes: Corrosion Probes detect wall thickness reduction caused by corrosion, erosion, etc., and can detect damage in the wall.
Advantages
1.High compatibility, can be compatible with most phased array flaw detectors.
2.The combination of s19 and s20 can automatically detect the girth weld, which is suitable for manual or automatic inspection of pipeline welds.
3. S20 is internal focus probeto optimize the signal to noise ratio
4.Good beam energy in the detection of small pipe/thin wall samples
5.Acoustic, can be matched with Rexolite, can complete most angles of sound beam
6.Can detect thick flat materials and welds, forgings, noise or granular materials
Applications
1. Oil and gas: oil pipelines, bottles, tanks, etc.
2. Electricity: pressure vessels and pipelines, turbine blades, rotor monitoring, etc.
3. Other: testing of thick welds, pipe welds, etc.
Specification
| Probe Series |
Model |
Compatible Model |
Element Shape |
Freq (MHz) | E-Nos | Pitch (mm) |
Active (mm) |
Elev. (mm) |
Size(LxWxH) |
| TS21/A14 | 2.25L60-1.0x10 | 2.25L60-60x10 | Linear | 2.25 | 60 | 1.00 | 60.0 | 10.0 |
68x23x20 (mm) (in) |
| 3.5L60-1.0x10 | 3.5L60-60x10 | Linear | 3.5 | 60 | 1.00 | 60.0 | 10.0 | ||
| 5L60-1.0x10 | 5L60-60x10 | Linear | 5 | 60 | 1.00 | 60.0 | 10.0 | ||
| 7.5L60-1.0x10 | 7.5L60-60x10 | Linear | 7.5 | 60 | 1.00 | 60.0 | 10.0 | ||
| 10L60-1.0x10 | 10L60-60x10 | Linear | 10 | 60 | 1.00 | 60.0 | 10.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Wedge Specification
| Probe Series | Model | Compatible Model | Element Shape | Size(LxWxH) |
| TS21/A14 | N0L | 0°LW | 40°~70° |
68x23x20 (mm) (in) |
| N60L | 60°LW | 40°~70° | ||
| N55S | 55°SW | 40°~70° |
Quick Details
Model Number:5L60-1.0x10-TS21/5L60-60x10-A14
Element:60
Element Shape:liner
Size:LxWxH 68x23x20(mm) 2.68x0.91x0.79(in)
Application:Oil and gas: oil pipelines, bottles, tanks, etc.
Warranty:12 Months
Case:Stainless steel
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
